APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card, Extended runtime, W/ rail kit, 6-year warranty

4 414.73 € ex VAT

In stock · 1

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card, Extended runtime, W/ rail kit, 6-year warranty, Double-conversion (Online), 5 kVA, 4500 W, Sine, 160 V, 275 V

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with Hard Wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 6-year warranty and comes with a built-in lead-acid battery.

Double-conversion (Online)
5 kVA 4500 W
Waveform: Sine
10 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount Black

Specifications

Features
Warranty	72 mo.
Noise level	55 dB
Display type	LCD
Chassis type	Rackmount
USB port
Waveform	Sine
SmartSlot
Cold start
Efficiency	94.1%
Power plug	Hardwire
Auto-restart
Crest factor	3:1
Output power	4500 W
UPS topology	Double-conversion (Online)
Certification	REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, NOM, VDE
Rack capacity	3U
Product colour	Black
AC outlet types	C13 coupler, C19 coupler
Input frequency	40 - 70 Hz
Audible alarm(s)
Battery capacity	845 VAh
Hot-swap battery
Serial interface
Surge protection
SmartConnect port
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Operating altitude	0 - 3000 m
AC outlets quantity	10 AC outlet(s)
Surge energy rating	480 J
Battery recharge time	1.5 h
Output power capacity	5 kVA
Serial interface type	RJ-45
Automatic battery test
Non-operating altitude	0 - 15000 m
Compliance certificates	RoHS
Emergency Power Off (EPO)
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C
Output frequency regulation	50/60 Hz
Sustainability certificates	ENERGY STAR
Number of output IEC jumpers	2
Input operation voltage (max)	275 V
Input operation voltage (min)	160 V

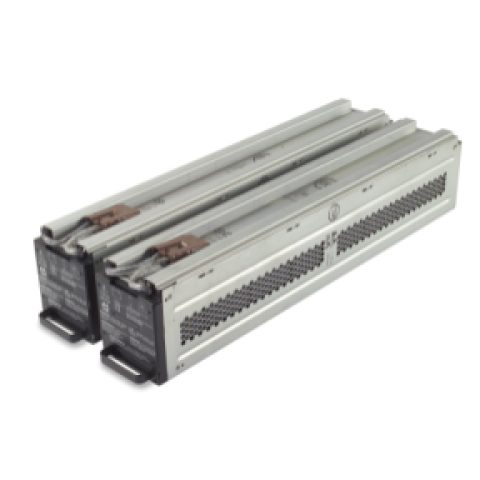

Replacement battery cartridge	APCRBC140
Output operation voltage (max)	240 V
Output operation voltage (min)	220 V
Storage relative humidity (H-H)	0 - 95%
Typical backup time at full load	4 min
Typical backup time at half load	11.8 min
Operating relative humidity (H-H)	0 - 95%
International Protection (IP) code	IP20
Total carbon footprint (kg of CO2e)	8408.59
Output voltage Total Harmonic Distortion (THD)	3%
Weight & dimensions
Depth	719 mm
Width	432 mm
Height	130 mm
Other
Packaging content	Web/SNMP Management Card
Packaging
Gross weight	66,9 kg
Gross depth	960 mm
Gross width	610 mm
Gross height	330 mm
Bracket
Warranty card
Rack mount kit
Temperature sensor
Management card included
Quick installation guide
